รายละเอียด
| ชนิดของเครื่องพิมพ์ |
เครื่องพิมพ์สลิป แบบหัวเข็ม |
| จำนวนหัวเข็ม |
9 |
| หน่วยความจำ |
4K - 40Bytes |
| ความเร็ว |
4.7 lps (ที่ 40 คอลัมน์, 16 cpi), 6.0 lps (ที่ 30 คอลัมน์, 16 cpi) |
| ชนิดของกระดาษ |
1 ต้นฉบับ 1 สำเนา |
| การเชื่อมต่อ |
คอมพอร์ต, Bi-directional parallel, |
Descriptions
| Printer Type |
Slip Printer Dot Matrix |
| Pin |
9 |
| Data Buffer |
4K - 40Bytes |
| Speed |
4.7 lps (at 40 columns, 16 cpi), 6.0 lps (at 30 columns, 16 cpi) |
| Copy capability |
One original and one copy |
| Interface |
RS-232, Bi-directional parallel |
|
|
|
|
|
|
 รายละเอียดผลิตภัณฑ์
การติดตั้ง
 |
|
|
 |
|
The

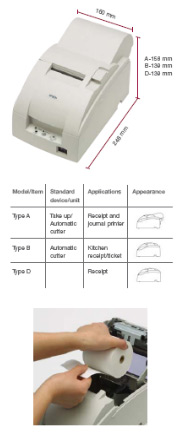

TM-U220 - The
New Industrywide
Standard in
Printing |
The TM-U220 is
the easy to use
yet powerful
successor to the
TM-U210, whose
ease-of-use and
reliability have
made it an
overwhelming
favorite around
the world.
|
|
|
|
|
 |
|
Outstanding
Compatibility |
|
The TM-U220
printers are
designed to be
compatible with
existing systems
built around a
TM-U210. These
systems can be
upgraded simply
by dropping in a
TM-U220.
Moreover, since
the external
dimensions are
nearly
identical, there
is no need to
change the
installation
environment. The
transition to
the new model is
as smooth as can
be. |
|
|
|
|
 |
|
Easy
Operation |
|
Free busy
operators from
troublesome roll
paper and ribbon
cassette
replacement. The
TM-U220 makes
these chores a
snap. Simply pop
the cover, drop
in the paper or
ribbon, shut the
cover. You're
back in
business. |
|
| |
|
 |
|
Higher
Printing Speed |
A full 30%
faster than its
predecessors,
the TM-U220
printers provide
high-efficiency
throughput.
Retailers can
hand receipts to
customers
faster.
Restaurant
kitchens can
receive orders
quickly.
|
|
| |
|
| |
|
|
RS232/Parallel/USB
Interface board |
| |
|
|
Environmentally
Conscious |
|
This product
meets Epson
ecology label
compliance
standards and
has following
major features: |
|
| |
|
 |
-
Low energy
consumption (25 %
lower during
operation, 60 %
lower during standby
than TM-U210).
-
Reduced labor for
disassemby by
reducing the number
of parts.
-
No use of chemical
substances
prohibited to be
included in products
for parts, materials
and packing
materials.
-
Uses high quality
plain paper, since
it is easier for
recycling than
thermal paper. Three
selectable paper
widths avoid wasting
paper.
|
| RS232/Parallel/USB Interface board |
| |
|
- Interface boards are exchangeable
- Modularized design for easy maintenance
- High-speed communication
- Optimized hardware circuit design with high reliability |
| |
|
|
RS-232 interface board
Is has RTS/CTS, DSR/DRT handshake signal, supports baud rate of 2400 BPS, 4800 BPS, 9600 BPS, 19200 BPS, 38400 BPS, 57600 BPS. Its reset inhibitive function can disable data transmission at the moment when power on. The interface IT can endure MAX. 15 KV static, which ensures reliable communication. |
| |
|
 |
Parallel interface board
It can execute high-speed data transmission. which complies with IEEE 1284 and supports bi-directional data transmission. Its optimized hardware design features a powerful applicability. |
| |
|
 |
USB interface board
It matches with USB1.1 protocal and supports full-speed mode for acheiving high-speed communication. Its features as PnP (plug and play) and disconnection or connection with power on offer customers a great convenience. |
|
|
|
|
 |
|
|
|
Specifications |
|
Item |
Model |
|
Printing |
Print Method
|
Direct Thermal Line
|
|
Resolution |
203 (V) x 180 (H) DPI
|
|
Print Width
|
80 mm (MAX)
|
|
Print Speed
|
150 mm/s |
|
Memory |
Ram: 128KB, Flash: 1M
|
|
Printhead overheating
protection |
Thermistor |
|
Printhead Position
|
Micro switch
|
|
Paper near end
|
Micro switch
|
|
Driver |
Win98/2000/NT/XP |
|
Interface |
Centronics, RS232,
RS485/422, USB
(selectable)
|
|
Cash drawer control
|
1-2 cash drawers
|
Barcodes
Font
Graphics |
Barcode Supported
|
INTERLEACED 2 OF 5, UPC-A,
UPC-E, EAN-8,
EAN-13, CODABAR,
CODE39, CODE128, CODE93
|
|
Fonts |
Standard ASCII (12x24),
Compressed ASCII (9x17)
Code page 437, 850,
852, 860, 863, 865, 858
|
|
Character Modification
|
Rotaion (0°, 90°, 180°,
270°),
entargement(1-6times)
bold, underline, black
white reserve
|
|
Graphic Printing
|
Bit image downloading
Direct bit image
printing
Download up to 6 bit
images into 8Kb buffer
Support fast graphics
printing in bit image
mode |
|
Paper |
Paper Type |
Continuous Paper,
marked paper
|
|
Paper Thickness
|
65±5µm |
|
Paper width
|
82.5±0.5mm, 80±0.5mm,
76±0.5mm, 69.5±0.5mm
57.5±0.5mm |
|
Paper roll OD
|
ø83mm (max)
|
|
Paper cut |
Tear off, full cut,
partial cut |
|
Power Adaptor
|
Input |
100-240VAC, 50-60Hz
|
|
Output |
24V±5%DC, Mear Current
2.3A |
|
Environtment |
Operation temperature
and humidity
|
0°C to 45 °C, 20% to
80% RH (Non-condensed)
|
|
Storage temperature and
humidity |
-40°C to 55 °C, 93% RH
or less(Non-condensed)
|
|
Reliability |
Printhead lifetime
|
» 100 km |
|
Cutter lifetime
|
1,500,000 cuts
|
|
Physics |
Weight |
Approx. 2.3kg
|
|
Dimensions |
146 mm(W) x 193 mm(D) x
144 mm(H)
(without paper holder)
|
|
|
|
